Small Speakers
Small Speakers
AVP 4
4 inch speaker
- High-efficiency 4.5-inch full range speaker
- Metal aluminum body with fine metal grill
- Mounting bracket
AVP 4
4 inch speaker
- High-efficiency 4.5-inch full range speaker
- Metal aluminum body with fine metal grill
- Mounting bracket
Frequency response | 130Hz - 18KHz +/-3dB |
Nominal coverage | 70° H x 70° V |
Sensitivity (@1w/1m) | 92 dB SPL |
Power rating | 50 watt |
Nominal impedance | 8Ω |
Max SPL | 109dB SPL 115dB Peak |
Driver | 1x4.5" full range |
Connector | Removable Terminal block |
Construction | Aluminium body |
Dimentions | 130x130x139m |
Weight | 2.5kg |
AVP 6
6 inch speaker
- 38mm neodymium full range driver
- Ply with metal grill
- Mounting bracket
AVP 6
6 inch speaker
- 38mm neodymium full range driver
- Ply with metal grill
- Mounting bracket
Frequency response | 120Hz - 20KHz +/-3dB |
Nominal coverage | 80° H x 80° V |
Sensitivity (@1w/1m) | 94 dB SPL |
Power rating | 130 watt |
Nominal impedance | 8Ω |
Max SPL | 115dB SPL 120dB Peak |
Driver | 1x6" full range |
Connector | Removable Terminal block |
Construction | 9&12 Ply + Metal grill |
Dimentions | 201x201x183m |
Weight | 3.5kg |
AVP 205
2 x 5" inch coaxial speaker
- 1 x 5" coaxial + 1 x 5" woofer
- Compact
- Ply with metal grill
AVP 205
2 x 5" inch coaxial speaker
- 1 x 5" coaxial + 1 x 5" woofer
- Compact
- Ply with metal grill
Frequency response | 100Hz - 23KHz +/-3dB |
Nominal coverage | 100° H x 100° V |
Sensitivity (@1w/1m) | 97 dB SPL |
Power rating | 280 watt AES |
Nominal impedance | 8Ω |
Max SPL | |
Driver | LF 1 x 5" HF 1x 5" coaxial |
Connector | Removable Terminal block |
Construction | Ply + Metal grill |
Dimentions | 350Hx166Wx200Dmm |
Weight | 6.5kg |

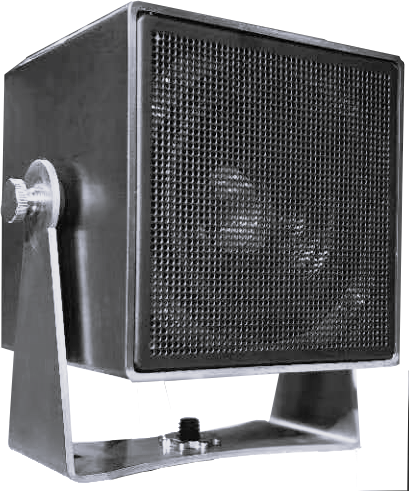

AVP 104 Coming soon
4 inch speaker
- High-efficiency 4.5-inch full range speaker
- Metal aluminum body
- Mounting bracket
AVP 104 Coming soon
4 inch speaker
- High-efficiency 4.5-inch full range speaker
- Metal aluminum body
- Mounting bracket
Frequency response | |
Nominal coverage | |
Sensitivity (@1w/1m) | |
Power rating | |
Nominal impedance | 8Ω |
Max SPL | |
Driver | 1x4.5" full range |
Connector | Removable Terminal block |
Construction | Aluminium body |
Dimentions | |
Weight | |
AVP 6.5
6.5 inch coaxial speaker

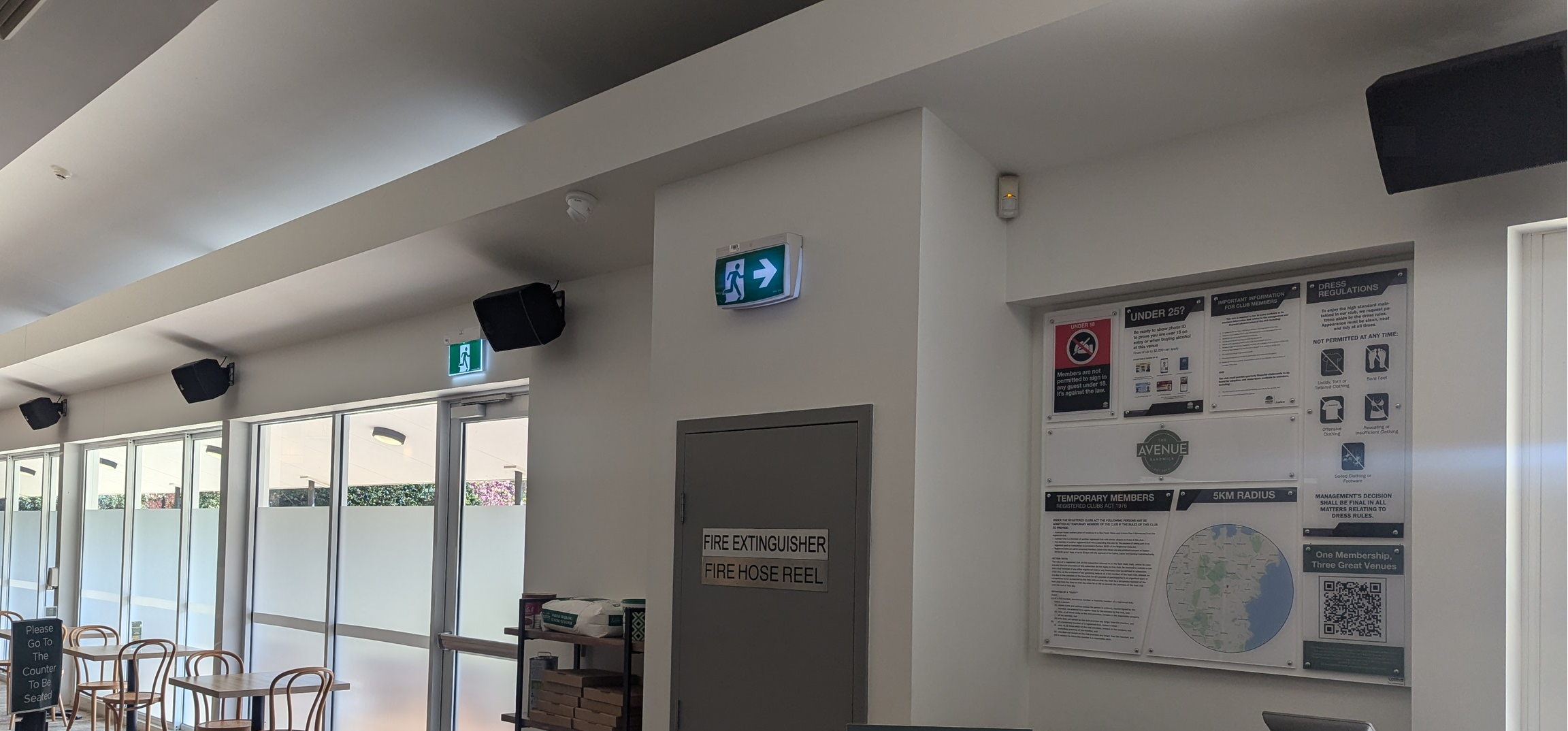

- Sorry have no photos, they went to this project
- Full range
- Ply with metal grill
AVP 6.5
6.5 inch coaxial speaker
- Sorry have no photos, they went to this project
- Full range
- Ply with metal grill
Frequency response | 65Hz - 23KHz +/-3dB |
Nominal coverage | 80° H x 80° V |
Sensitivity (@1w/1m) | 93 dB SPL |
Power rating | 100 watt |
Nominal impedance | 8Ω |
Max SPL | 114dB SPL 120dB Peak |
Driver | 1x6" coaxial full range |
Connector | Removable Terminal block |
Construction | 12 Ply + Metal grill |
Dimentions | 380x260x18mm |
Weight | 8kg |
AVP 8
8 inch coaxial speaker
- 8" coaxial + 44mm compression driver
- Ply with metal grill
- Mounting bracket
AVP 8
8 inch coaxial speaker
- 8" coaxial + 44mm compression driver
- Ply with metal grill
- Mounting bracket
Frequency response | 90Hz - 18KHz +/-3dB |
Nominal coverage | 80° H x 80° V |
Sensitivity (@1w/1m) | 93 dB SPL |
Power rating | 250 watt |
Nominal impedance | 8Ω |
Max SPL | 123dB Peak |
Driver | LF 1x8" HF 1x44mm comp drive |
Connector | Removable Terminal block |
Construction | Ply + Metal grill |
Dimentions | 232x222x185mm |
Weight | 9.8kg |
AVP L4
4 x 4.5"speaker
- Narrow vertical dispersion
- Ply with metal grll
AVP L4
4 x 4.5"speaker
- Narrow vertical dispersion
- Ply with metal grll
Frequency response | 160Hz - 18Khz |
Nominal coverage | 80° H x 30° V |
Sensitivity (@1w/1m) | 95dB (1W@1m) |
Power rating | 160 watts AES |
Nominal impedance | 8Ω |
Max SPL | 116dB 122dB |
Driver | 4x4.5" drivers |
Connector | Speakon |
Construction | 12mm Birch Ply Metal Grill |
Dimentions | 524Hx120Wx210D mm |
Weight | 6.5Kg |
AVP L6
6 x 4.5" speaker
- Narrow vertical dispersion
- Ply with metal grill
AVP L6
6 x 4.5" speaker
- Narrow vertical dispersion
- Ply with metal grill
Frequency response | 130Hz - 20KHz +/-3dB |
Nominal coverage | 80° H x 30° V |
Sensitivity (@1w/1m) | 96 dB SPL |
Power rating | 240 watt |
Nominal impedance | 8Ω |
Max SPL | 120dB SPL 126dB Peak |
Driver | 6x4.5" coaxial full range |
Connector | Speakon |
Construction | 12mm Birch Ply + Metal grill |
Dimentions | 774Hx150Wx210Dmm |
Weight | 12kg |
AVP 6H
6" + 1" horn speaker
- 6" + 34mm compression driver
- Differential Horn
- Ply with metal grill
AVP 6H
6" + 1" horn speaker
- 6" + 34mm compression driver
- Differential Horn
- Ply with metal grill
Frequency response | 80Hz - 21KHz +/-3dB |
Nominal coverage | 100° H 100° V Near 50° V Far |
Sensitivity (@1w/1m) | 92 dB SPL |
Power rating | 120 watts |
Nominal impedance | 8Ω |
Max SPL | 120dB Peak |
Driver | LF 1x6.5" HF 1x34mm comp drive |
Connector | Removable Terminal block |
Construction | 15mm Birch Ply + Metal grill |
Dimentions | 400x200x200mm |
Weight | 7.5kg |
