Power Amplifiers
Power Amplifiers

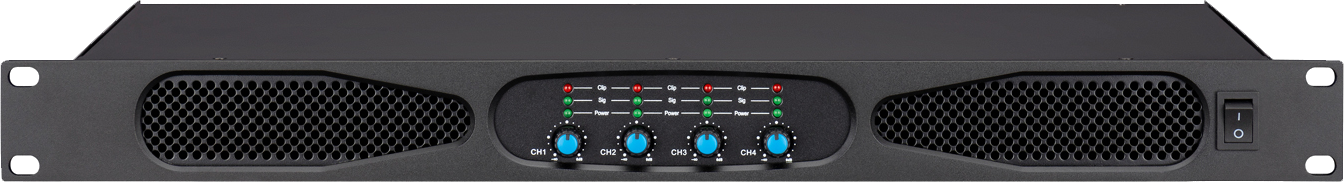

DX Series
Power amplifiers
- 2 or 4 channel
- 250, 500, 800 watt
- 1ru
DX Series
Power amplifiers
- 2 or 4 channel
- 250, 500, 800 watt
- 1ru
Frequency response | 20Hz - 20KHz +/-0.5dB |
THD 1khz @8Ω 1/8 power | <0.005% |
Input Impedance balanced/unbalanced | >20KΩ / >10KΩ |
Signal to Noise Ratio | >104dB |
Damping factor | >600 |
Slew rate | >20V/us |
Input sensitivity | 32dB/1V/ 0.775V |
Load | >2Ω |
Fans | Variable speed, front to rear |
Protection | Soft start, start, DC lnfrasonic frequency, High-frequency, Overheat, Short circuit, Mute on/off |

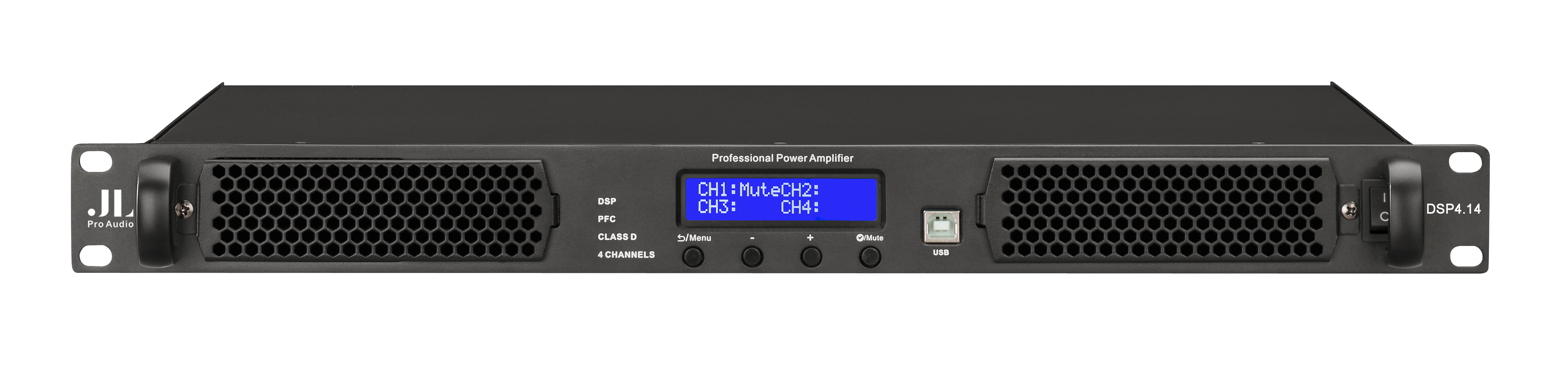

DSP Series
DSP Power amplifiers
- 2 or 4 channel
- 250, 500, 800 watt
- Main frequency 294.912MHz, 32-bit DSP processor, sampling frequency 96KHz 24-bitA/D and D/A conversion
- Delay 0-200ms, EQ 31band or PEQ High/Low pass + shelf, Limiter
DSP Series
DSP Power amplifiers
- 2 or 4 channel
- 250, 500, 800 watt
- Main frequency 294.912MHz, 32-bit DSP processor, sampling frequency 96KHz 24-bitA/D and D/A conversion
- Delay 0-200ms, EQ 31band or PEQ High/Low pass + shelf, Limiter
Frequency response | 20Hz - 20KHz +/-0.5dB |
THD 1khz @8Ω 1/8 power | <0.005% |
Input Impedance balanced/unbalanced | >20KΩ / >10KΩ |
Signal to Noise Ratio | >104dB |
Damping factor | >600 |
Slew rate | >20V/us |
Input sensitivity | 32dB/1V/ 0.775V |
Load | >2Ω |
Fans | Variable speed, front to rear |
Protection | Soft start, start, DC lnfrasonic frequency, High-frequency, Overheat, Short circuit, Mute on/off |
