Speakers Large
AVP 8H
8 inch + horn speaker
- High-efficiency 8 inch
- LF 8" + 34mm Differential horn
- Ply with metal grill
AVP 8H
8 inch + horn speaker
- High-efficiency 8 inch
- LF 8" + 34mm Differential horn
- Ply with metal grill
Frequency response | 65Hz - 21KHz +/-3dB |
Nominal coverage | 90° H x 50° V |
Sensitivity (@1w/1m) | 95 dB SPL |
Power rating | 150 watt |
Nominal impedance | 8Ω |
Max SPL | 117dB SPL 123dB Peak |
Driver | LF 1x8" HF 34mm Differential horn |
Connector | Speakon |
Construction | 15mm Birch Ply Metal grill |
Dimensions | 510Hx350Wx320Dmm |
Weight | 12kg |

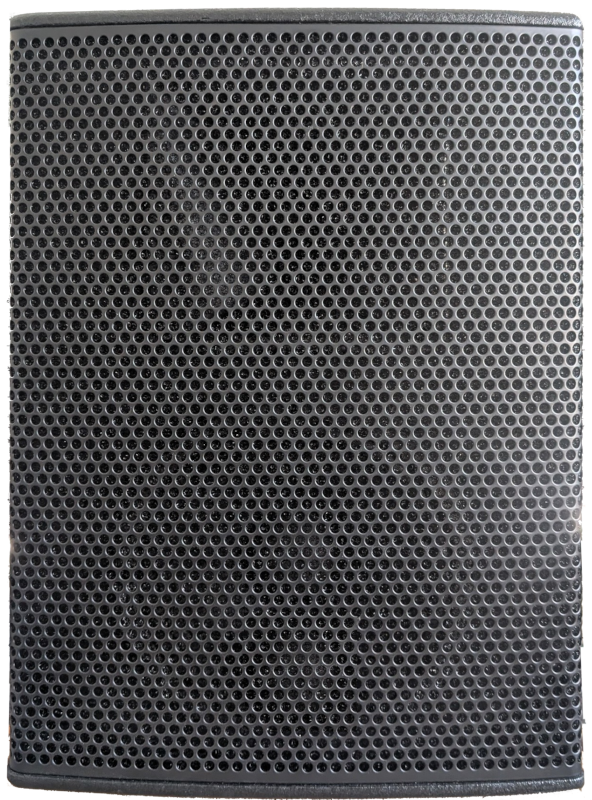

AVP 8WH
8 inch + horn speaker Same components as 8H
- High-efficiency 8-inch speaker
- LF 8" + 34mm Differential horn
- Ply with metal grill
AVP 8WH
8 inch + horn speaker Same components as 8H
- High-efficiency 8-inch speaker
- LF 8" + 34mm Differential horn
- Ply with metal grill
Frequency response | 100Hz - 21KHz +/-3dB |
Nominal coverage | 90° H x 50° V |
Sensitivity (@1w/1m) | 95 dB SPL |
Power rating | 150 watt |
Nominal impedance | 8Ω |
Max SPL | 117dB SPL 123dB Peak |
Driver | LF 1x8" HF 34mm Differential horn |
Connector | Terminal |
Construction | 15mm Birch Ply Metal grill |
Dimensions | 460Hx340Wx200Dmm |
Weight | 10kg |
AVP 10H
10 inch + horn speaker
- High-efficiency 10-inch full range speaker
- LF 10" + 34mm horn
- Ply with metal grill
AVP 10H
10 inch + horn speaker
- High-efficiency 10-inch full range speaker
- LF 10" + 34mm horn
- Ply with metal grill
Frequency response | 65Hz - 23KHz +/-3dB |
Nominal coverage | 90° H x 50° V |
Sensitivity (@1w/1m) | 96 dB SPL |
Power rating | 250 watt |
Nominal impedance | 8Ω |
Max SPL | 119dB SPL 125dB Peak |
Driver | LF 1x10" |
Connector | Speakon |
Construction | 15mm Birch Ply Metal grill |
Dimensions | 460Hx260Wx285Dmm |
Weight | 12kg |
AVP L6
6 x 4.5" speaker
- Narrow vertical dispersion
- Ply with metal grill
AVP L6
6 x 4.5" speaker
- Narrow vertical dispersion
- Ply with metal grill
Frequency response | 130Hz - 20KHz +/-3dB |
Nominal coverage | 80° H x 30° V |
Sensitivity (@1w/1m) | 96 dB SPL |
Power rating | 240 watt |
Nominal impedance | 8Ω |
Max SPL | 120dB SPL 126dB Peak |
Driver | 6x4.5" coaxial full range |
Connector | Speakon |
Construction | 12mm Birch Ply + Metal grill |
Dimentions | 774Hx150Wx210Dmm |
Weight | 12kg |

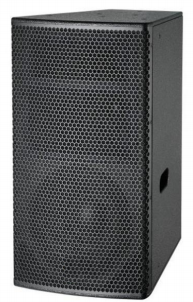

AVP 12F3
12 inch 3 way speaker
- 3 way full range speaker
- 1 x 12" + 1 x 6.5" + 44mm horn
- Ply metal grill
- Active cross over required
AVP 12F3
12 inch 3 way speaker
- 3 way full range speaker
- 1 x 12" + 1 x 6.5" + 44mm horn
- Ply metal grill
- Active cross over required
Frequency response | 35Hz - 25KHz +/-3dB |
Nominal coverage | 80° H x 45° V |
Sensitivity (@1w/1m) | ? |
Power rating | 500 watt |
Nominal impedance | 8Ω |
Max SPL | 135dB SPL |
Driver | LF 1 x 12" Mid 1 x 6.5" Horn loaded HF 1 x 44 CD |
Connector | Speakon |
Construction | 18mm Birch Ply Metal grill |
Dimentions | 734HX408WX408Dmm |
Weight | 33.55kg |
AVP 15F3
15 inch 3 way speaker
- 3 way full range speaker
- 1 x 15" + 1 x 6.5" + 44mm horn
- Ply metal grill
- Active cross over required
AVP 15F3
15 inch 3 way speaker
- 3 way full range speaker
- 1 x 15" + 1 x 6.5" + 44mm horn
- Ply metal grill
- Active cross over required
Frequency response | 32Hz - 25KHz +/-3dB |
Nominal coverage | 80° H x 45° V |
Sensitivity (@1w/1m) | ? |
Power rating | 500 watt |
Nominal impedance | 8Ω |
Max SPL | 137dB SPL |
Driver | LF 1 x 15" Mid 1 x 6.5" Horn loaded HF 1 x 44 CD |
Connector | Speakon |
Construction | 18mm Birch Ply Metal grill |
Dimentions | 800HX445WX450Dmm |
Weight | 35.55kg |

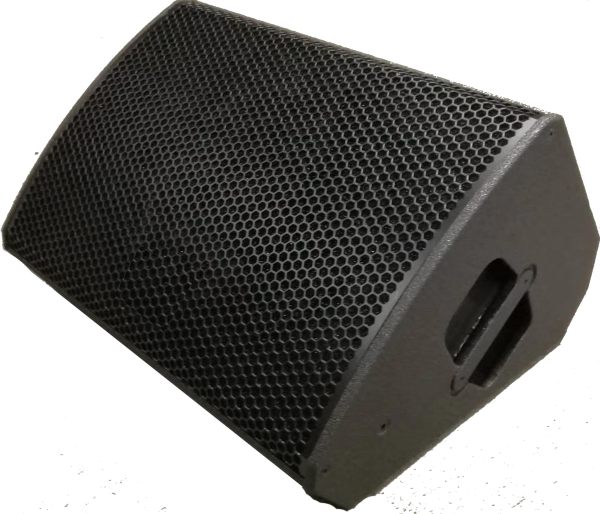

AVP 15FB
15 inch coaxial speaker Same driver as AVP 15MH
- 15 inch +75mm CD speaker
- Multi angle + stand
- Ply with metal grill
AVP 15FB
15 inch coaxial speaker Same driver as AVP 15MH
- 15 inch +75mm CD speaker
- Multi angle + stand
- Ply with metal grill
Frequency response | 60Hz - 19KHz +/-3dB |
Nominal coverage | 50° H x 70° V |
Sensitivity (@1w/1m) | 99 dB SPL |
Power rating | 500 watt |
Nominal impedance | 8Ω |
Max SPL | 126dB SPL 130dB Peak |
Driver | 1 x 15" 80mm Voice Coil 1 x 75mm Compression D |
Connector | Speakon |
Construction | 15mm Birch Ply Metal grill |
Dimensions | 600Wx440Dx385H mm |
Weight | 22kg |

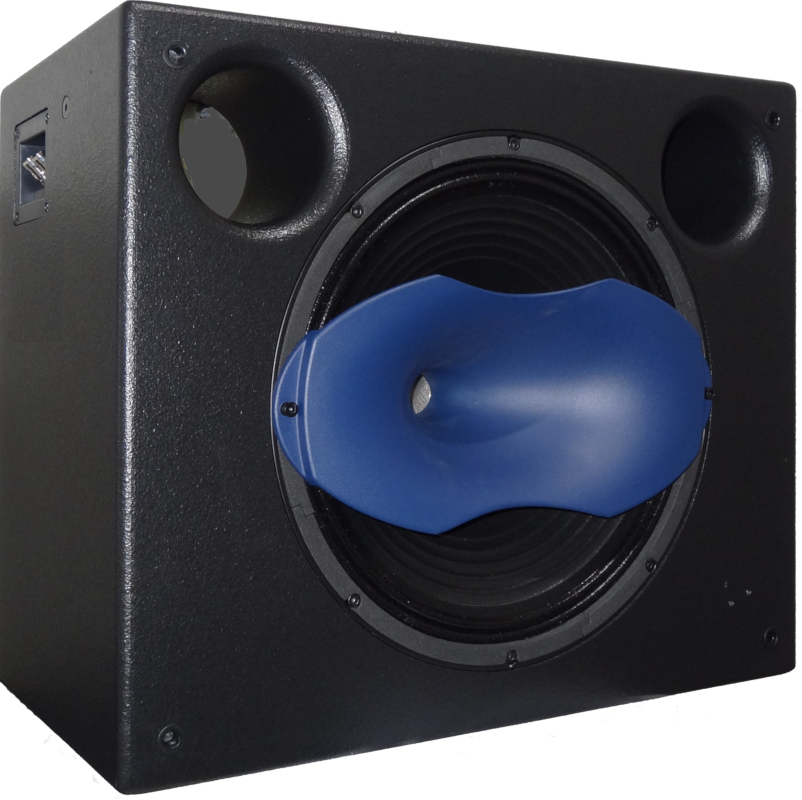

AVP 15MH
15 inch coaxial speaker Same driver as AVP 15FB
- 15 inch +75mm CD speaker
- Ply with cloth grill
AVP 15MH
15 inch coaxial speaker Same driver as AVP 15FB
- 15 inch +75mm CD speaker
- Ply with cloth grill
Frequency response | 60Hz - 19KHz +/-3dB |
Nominal coverage | 50° H x 70° V |
Sensitivity (@1w/1m) | 99 dB SPL |
Power rating | 500 watt |
Nominal impedance | 8Ω |
Max SPL | 126dB SPL 132dB Peak |
Driver | 1 x 15" 80mm Voice Coil 1 x 75mm Compression D |
Connector | Terminal |
Construction | 15mm Birch Ply Metal grill |
Dimensions | 600Wx500Wx300D mm |
Weight | 23kg |
AVP 10H
10 inch line array speaker Matched with active sub
- 10" + 2 x 44mm CD
- Integrated hardware
- Ply with metal grill
AVP 10H
10 inch line array speaker Matched with active sub
- 10" + 2 x 44mm CD
- Integrated hardware
- Ply with metal grill
Frequency response | 80Hz - 18KHz +/-3dB |
Nominal coverage | |
Sensitivity (@1w/1m) | 103 dB SPL |
Power rating | 450 watt |
Nominal impedance | 8Ω |
Max SPL | 129dB SPL 132dB Peak |
Driver | 1 x 10" 75mm VD Neodymium 2 x 44mm CD Neodymium |
Connector | Speaken |
Construction | Birch Ply Metal grill |
Dimensions | 526Wx302Hx160D mm |
Weight | 16kg |
